Sampling ORFs of neonGreen • codonopt

Initialization

Libraries

library(codonopt)
library(tidyverse)
library(Biostrings)

Parameters

set.seed(20230217)
N_SAMPLES=1000

## neonGreen
seq_neonGreen_dna <- DNAString("atggtcagcaaaggcgaagaagacaacatggcatcactgccagcgacacacgaacttcatattttcggctccatcaatggtgtggacttcgatatggttggacagggtactgggaaccctaacgatggatatgaggagttgaacttgaagagtaccaagggcgatcttcagttttcaccttggattctcgtacctcatataggttatggctttcatcaatatctgccctatcctgacggtatgtcacctttccaagcagctatggttgacgggagcggttatcaggttcaccggacaatgcagtttgaagatggagcctctttgaccgtaaattatcggtatacttatgagggcagccatattaaaggcgaggctcaagttaaggggactgggttccccgcggatggtcccgtaatgacaaacagtctgacggctgcagactggtgccgctctaagaagacatatccaaatgacaagacgattattagcactttcaagtggtcatacactacaggaaatggtaaacgctataggagcactgcccggaccacgtatactttcgcgaagccgatggcggcaaattatttgaaaaaccaaccgatgtatgtgttcagaaagacagaactcaagcattctaaaactgaactgaacttcaaagagtggcagaaagcctttactgatgtaatgggcatggacgaactctataagtaa")

Generate Samples

df_orfs <- tibble(
    seq=c(as.character(seq_neonGreen_dna), runiforf(seq_neonGreen_dna, size=N_SAMPLES)),
    type=c("original", rep("sample", N_SAMPLES))) %>%

    ## compute codon stability scores
    mutate(frac_opt=map_dbl(seq, ~ score_fraction_optimal(as_codons(.x))),
           mean_csc=map_dbl(seq, ~ score_mean_csc(as_codons(.x))),
           frac_opt_orfome=map_dbl(seq, ~ score_fraction_optimal(as_codons(.x), csc_k562_orfome())),
           mean_csc_orfome=map_dbl(seq, ~ score_mean_csc(as_codons(.x), csc_k562_orfome())),
           frac_gc=letterFrequency(DNAStringSet(seq), "GC")/nchar(seq_neonGreen_dna))

Plots

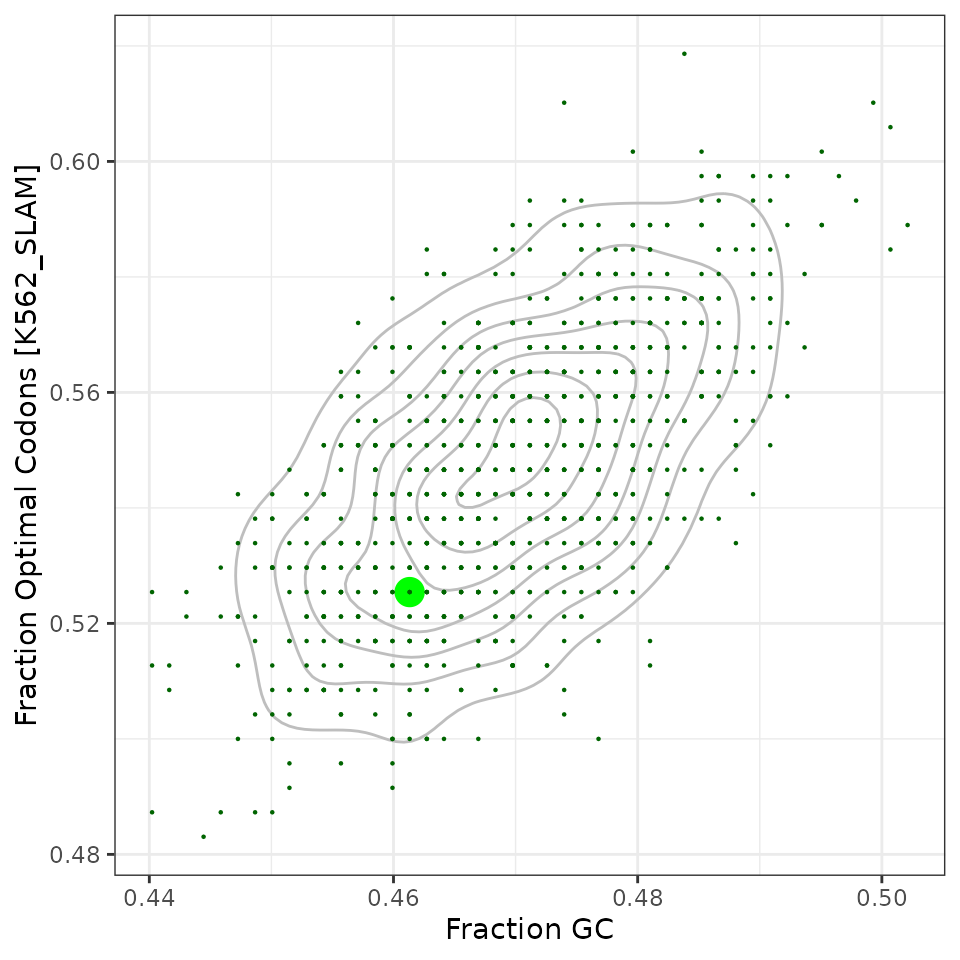

df_orfs %>%
    ggplot(aes(x=frac_gc, y=frac_opt)) +
    geom_density2d(color="grey") +
    geom_point(aes(size=type, color=type), pch=16) +
    scale_size_manual(values=c("original"=5, "sample"=0.5), guide=guide_none()) +
    scale_color_manual(values=c("original"="green", sample="darkgreen"),
                       guide=guide_none()) +
    labs(x="Fraction GC", y="Fraction Optimal Codons [K562_SLAM]") +
    theme_bw()

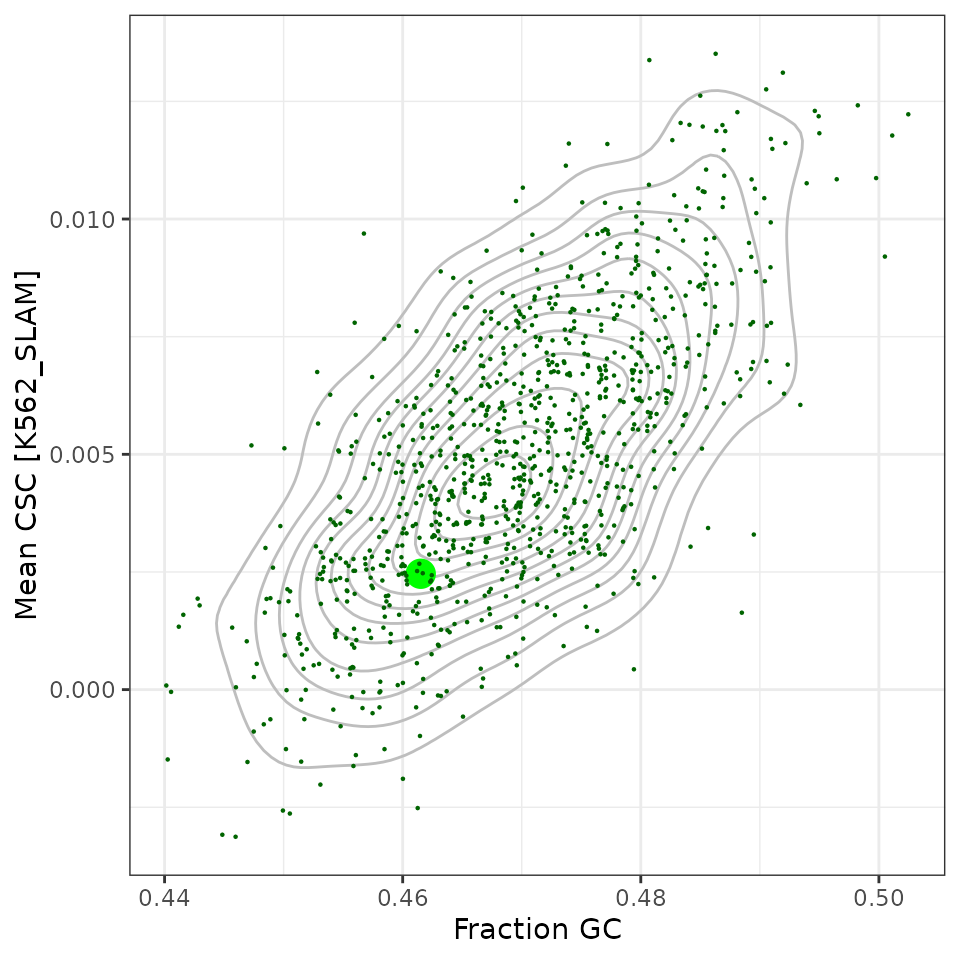

df_orfs %>%
    ggplot(aes(x=frac_gc, y=mean_csc)) +
    geom_density2d(color="grey") +
    geom_jitter(aes(size=type, color=type), pch=16, width=0.0005, height=0) +
    scale_size_manual(values=c("original"=5, "sample"=0.5), guide=guide_none()) +
    scale_color_manual(values=c("original"="green", sample="darkgreen"),
                       guide=guide_none()) +
    labs(x="Fraction GC", y="Mean CSC [K562_SLAM]") +
    theme_bw()

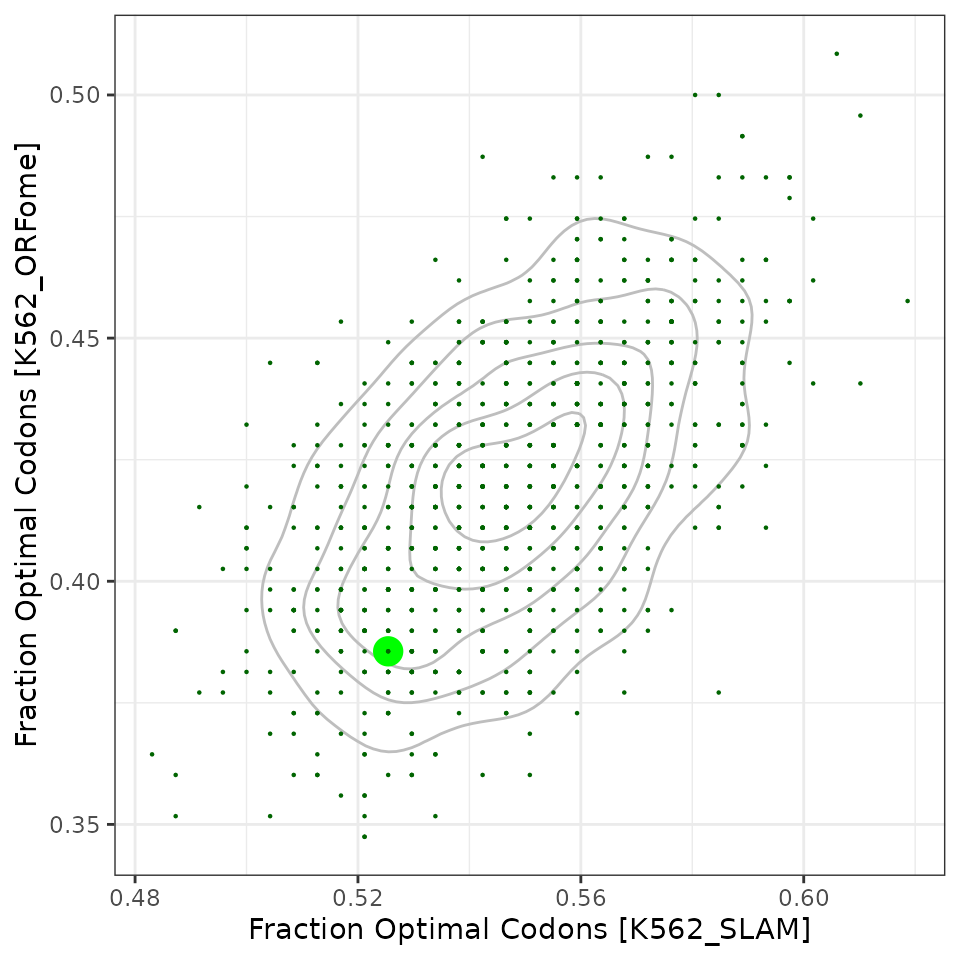

df_orfs %>%
    ggplot(aes(x=frac_opt, y=frac_opt_orfome)) +
    geom_density2d(color="grey") +
    geom_point(aes(size=type, color=type), pch=16) +
    scale_size_manual(values=c("original"=5, "sample"=0.5), guide=guide_none()) +
    scale_color_manual(values=c("original"="green", sample="darkgreen"),
                       guide=guide_none()) +
    labs(x="Fraction Optimal Codons [K562_SLAM]",
         y="Fraction Optimal Codons [K562_ORFome]") +
    theme_bw()

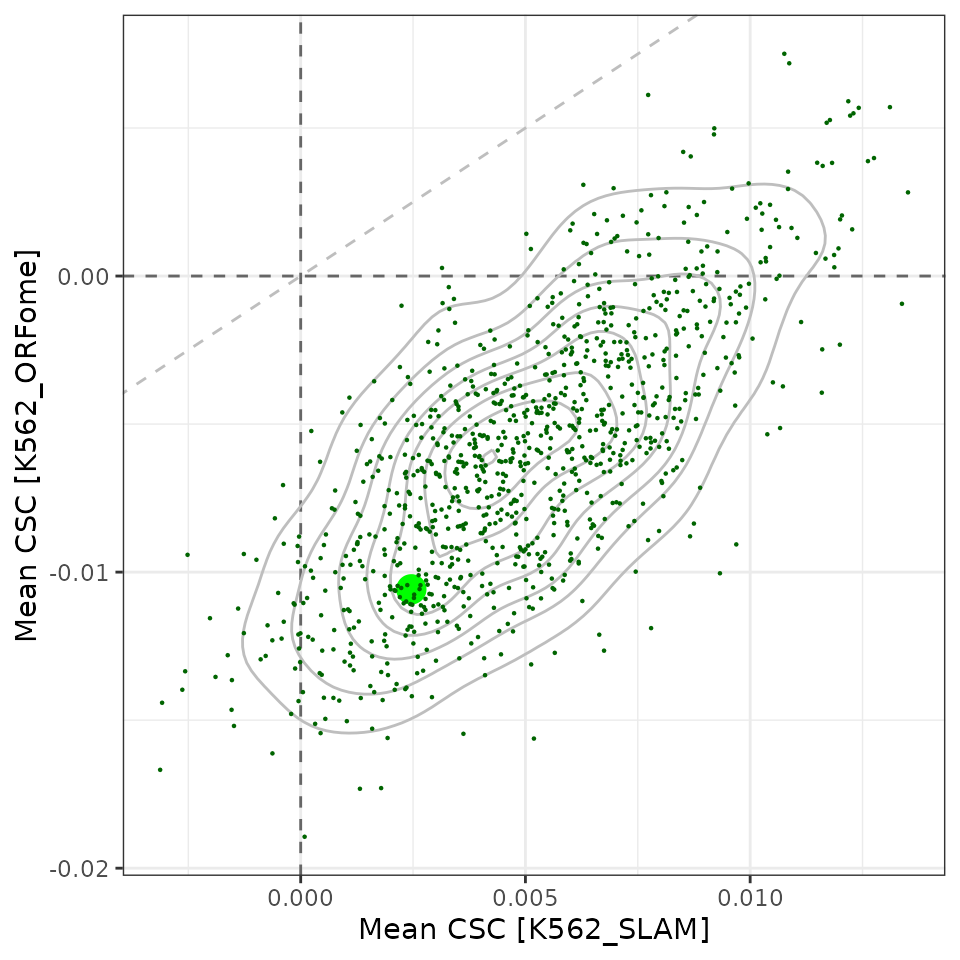

df_orfs %>%
    ggplot(aes(x=mean_csc, y=mean_csc_orfome)) +
    geom_abline(slope=1, linetype='dashed', color='grey') +
    geom_hline(yintercept=0, linetype='dashed', color='grey40') +
    geom_vline(xintercept=0, linetype='dashed', color='grey40') +
    geom_density2d(color="grey") +
    geom_point(aes(size=type, color=type), pch=16) +
    scale_size_manual(values=c("original"=5, "sample"=0.5), guide=guide_none()) +
    scale_color_manual(values=c("original"="green", sample="darkgreen"),
                       guide=guide_none()) +
    labs(x="Mean CSC [K562_SLAM]",
         y="Mean CSC [K562_ORFome]") +
    theme_bw()
